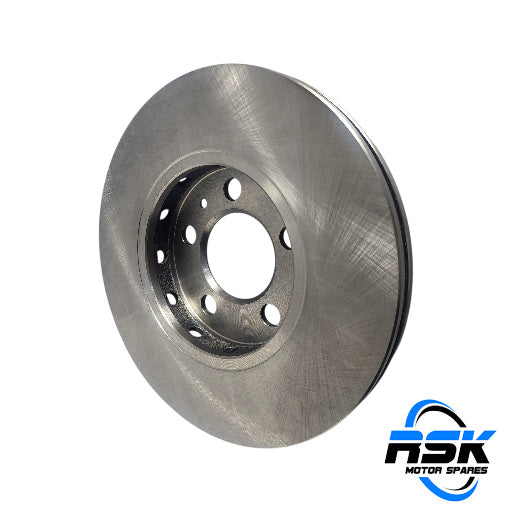

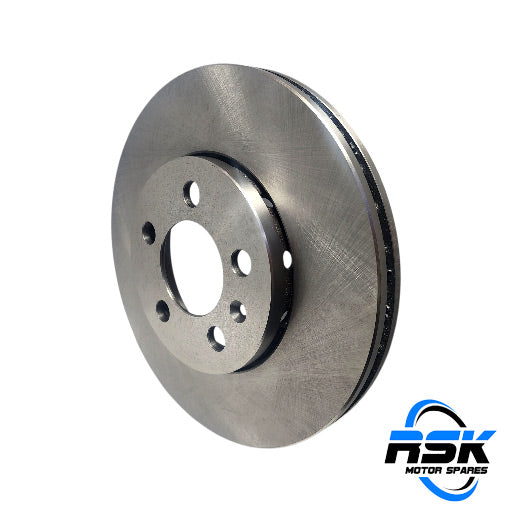

Volkswagen Polo, Golf, Vivo, Audi A1 - Front Brake Disc

Description

This premium front ventilated brake disc is precision-engineered to meet the strict safety and structural standards of the Volkswagen Audi Group (VAG) passenger platform. Designed with an internally dual-vented core, it draws air dynamically through the assembly to dissipate severe friction heat generated during heavy city driving or highway stops. This prevents common failure points such as structural distortion (warping), hot-spotting, and pad glazing. Cast from high-density grey iron, it ensures immediate pedal response, uniform friction alignment, and low-noise operational braking.

Compatible Vehicles

Audi A1 (8X) 1.2 TFSI, 1.4 TFSI & 1.6 TDI (2010–2018)

Audi A2 (8Z) 1.4 & 1.4 TDI (2000–2005)

Volkswagen Polo Mk4 (9N / 9N3) Hatch & Sedan (2002–2009)

Volkswagen Polo Mk5 / Mk6 (6R / 6C / AW) 1.2 TSI, 1.4 / TSI, 1.0 TSI, 1.6 TDI (2010–Present)

Volkswagen Polo Vivo (All Generations) 1.4, 1.6 & TSL (2010–Present)

Volkswagen Golf Mk4 (1J) 1.4, 1.6, 2.0 & 1.9 TDI (Models with 256mm Discs, 1998–2004)

Specifications

Part Number: DR 6398

OEM Reference No: 6R0615301 / 1J0615301D / 1J0615301L / 1J0615301J / 8Z0615301B

Alternative Part Numbers: DF2803 (TRW) / 09.7012.14 (Brembo) / 0986478853 (Bosch) / DDF927 (Ferodo)

Position: Front Axle

Type: Internally Ventilated Disc (Fv)

Diameter: 256.00 mm

Thickness (Path): 22.00 mm

Minimum Thickness: 20.00 mm

Height: 36.90 mm

Spigot Diameter (Hub Centre): 65.00 mm

Pitch Circle Diameter (PCD): 100.00 mm

Bolt Hole Count: 5 Hole Configuration
