Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.

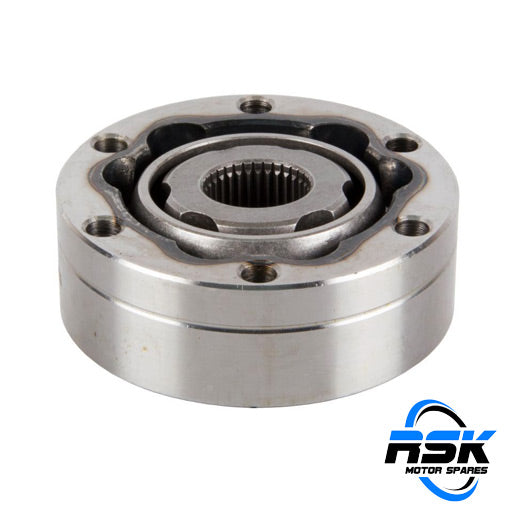

  • VW Citi Golf, Golf I–IV, Jetta, Caddy & Polo 100mm Inner CV Joint Kit (PJ603006 / 191498103). 33 teeth. Fast South Africa delivery.
1 1

Volkswagen Golf, Citi Golf, Jetta, Polo (100mm) - Inner CV Joint

Volkswagen Golf, Citi Golf, Jetta, Polo (100mm) - Inner CV Joint

R 799.99
R 799.99
Sale Sold out
Shipping calculated at checkout.

Description

This precision-machined inner Constant Velocity (CV) joint kit is manufactured to exact original equipment specifications to deliver smooth, vibration-free torque transfer from the transaxle to the drive wheels. Constructed from high-strength forged alloy steel with precision-ground ball tracks and internal raceways, this 100mm flange-type inner joint is engineered to withstand extreme rotational forces and continuous angular deflection during suspension travel. Replacing a worn, pitted, or dry inner CV joint eliminates severe drivetrain shudder under acceleration, transmission flange play, and knocking clunks during gear changes.

Compatible Vehicles

Volkswagen Citi Golf / Chico / Life / Velocity (1.3i / 1.4i / 1.6i / 1.8i) (1984–2009)

Volkswagen Golf I / Jetta I (1.6 / 1.8 / GTS / GTi) (1981–1984)

Volkswagen Golf II / Jetta II (1.6 / 1.8 / CLi / GTi / GTi 16V) (1984–1992)

Volkswagen Golf III / Jetta III (1.6 / 1.8 / 2.0 / VR6) (1992–1999)

Volkswagen Golf IV / Jetta IV (1.6 / 1.8T / 2.0 / 1.9 TDI) (1999–2005)

Volkswagen Caddy I Pick-Up / LDV (1.6 / 1.8 / 1.6D) (1982–2007)

Volkswagen Fox (1.3 / 1.6 / 1.8) (1987–1995)

Volkswagen Polo Classic (6KV) / Playa (1.4i / 1.6i / 1.8i) (1996–2002)

Audi 100 / 500 Series (5-Cylinder Engine Platforms) (1981–1994)

Application Note: Specifically engineered for 100mm flange inner CV drive shaft applications across standard 5-speed manual and select automatic Volkswagen Group front-wheel-drive platforms. (Note: Some smaller 1.3L/1.6L base models utilize a 94mm flange joint; always verify the outer diameter of the existing joint before installation). Important Fitment Note: Includes inner CV joint, rubber CV boot, high-temperature molybdenum grease pack, circlip, and boot clamps. Thoroughly clean the gearbox stub axle drive flange before bolting down. Torque gearbox flange M8/M10 multi-spline (XZD) drive bolts to original factory specifications.

Specifications

Part Type: Transmission Inner Drive Shaft CV Joint Assembly

Position: Gearbox / Transaxle Inner Drive Flange (Left or Right Side)

PartQuip Part Number: PJ603006

OEM Reference No: 191498103

Cross-Reference OEM Nos: 191498103 / 191498103X / 1J0498103 / 1J0498103X / 893498103 / 893498103X

Alternative Part Numbers: PJ603006 / VPJ603006 / VW6916 / SKF VKJA 8001 / LÖBRO 302243 / METELLI 16-1002A

Inner Spline Count: 33 Teeth

Joint Outer Diameter (Flange Dia): 100 mm

Overall Height / Length: 34 mm

Material Composition: Forged and Heat-Treated Chrome-Moly Alloy Steel

Fast and reliable delivery available across South Africa.
