Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.
Toyota Corolla, RunX, RAV4 (ZZ-Series) - Timing Chain Kit
Toyota Corolla, RunX, RAV4 (ZZ-Series) - Timing Chain Kit
Regular price
R 1,799.99
Regular price
Sale price
R 1,799.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
This precision-engineered engine timing chain kit is manufactured to exact original equipment specifications to maintain precise valve timing synchronization and smooth double-overhead camshaft drive operation across Toyota ZZ-series engines. Constructed with high-strength, heat-treated alloy steel links and low-friction, wear-resistant synthetic guide channels, this complete replacement kit directly addresses timing chain elongation, guide channel wear, and hydraulic tensioner degradation. Installing this kit eliminates cold-start metallic chain rattle, restores engine responsiveness, prevents timing correlation ECU error codes (such as P0011/P0012/P0335), and protects the engine against severe internal damage caused by timing jump or chain failure.
Compatible Vehicles
Toyota Corolla (E120 / E130 Platform) 1.4i / 1.6i / 1.8i (4ZZ-FE / 3ZZ-FE / 1ZZ-FE 16V DOHC Engines) (2000–2008)
Toyota RunX (E120 Platform) 1.4i / 1.6i / 1.8i (4ZZ-FE / 3ZZ-FE / 1ZZ-FE 16V DOHC Engines) (2002–2007)
Toyota RAV4 II (XA20 Platform) 1.8i 2WD (1ZZ-FE 16V DOHC Engine, 92kW) (2000–2005)
Toyota Yaris / Vitz (P10 / P90 Platform) 1.3i / 1.5i / 1.8i TS (2NZ-FE / 1NZ-FE / 1ZZ-FE 16V DOHC Engines) (1999–2011)
Toyota Celica (T230 Platform) 1.8i VVT-i (1ZZ-FE 16V DOHC Engine, 105kW) (1999–2006)
Toyota Avensis (T220 / T250 Platform) 1.6i / 1.8i (3ZZ-FE / 1ZZ-FE 16V DOHC Engines) (2000–2008)

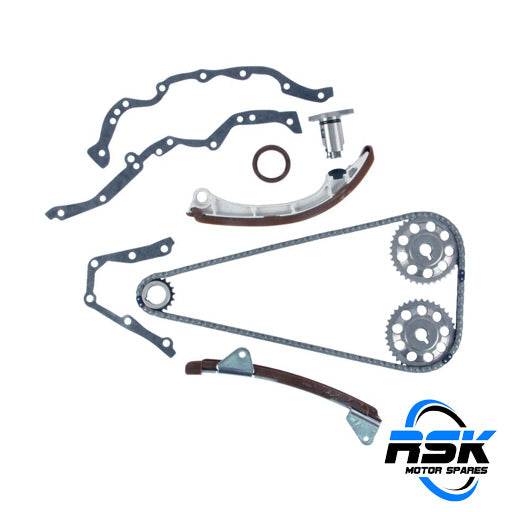

Application Note: Specifically engineered for Toyota 1.4L (4ZZ-FE), 1.6L (3ZZ-FE), and 1.8L (1ZZ-FE) 16-Valve DOHC petrol engines. (Note: This kit is supplied without the VVT-i variable valve timing camshaft actuator hub gear). Important Fitment Note: Includes primary timing chain, hydraulic timing chain tensioner, fixed guide rail, tensioner slide rail, exhaust camshaft gear, and crankshaft timing sprocket. Clean all timing cover sealing surfaces thoroughly prior to installation and inspect the oil sump strainer for plastic debris from worn old guides. Dedicated Toyota timing marks on the bright chain links must be lined up with the corresponding punch marks on the sprockets at Top Dead Center (TDC) during reassembly.
Specifications
Part Type: Engine Timing Chain Kit
Position: Front Internal Engine Timing Housing
OEM Reference No: 13506-22030
Cross-Reference OEM Nos: 1350622030 / 13506-0D010 / 135060D010 / 13540-22022 / 1354022022 / 13559-22011 / 1355922011 / 13561-22020 / 1356122020 / 13523-22020 / 1352322020
Alternative Part Numbers: TCK-TOY-02 / TCKTOY-02 / TCKTOY02 / FEBI 32806 / SWAG 81 93 2806 / INA 559 0081 10 / BGA TC0910K / FAI TCK12 / DAYCO KTC1050 / SKF VKML 81000 / OSK T027K
Material Composition: Heat-Treated High-Tensile Forged Steel Chain with Reinforced Polyamide Composite Guide Rails
Fast and reliable delivery available across South Africa.
