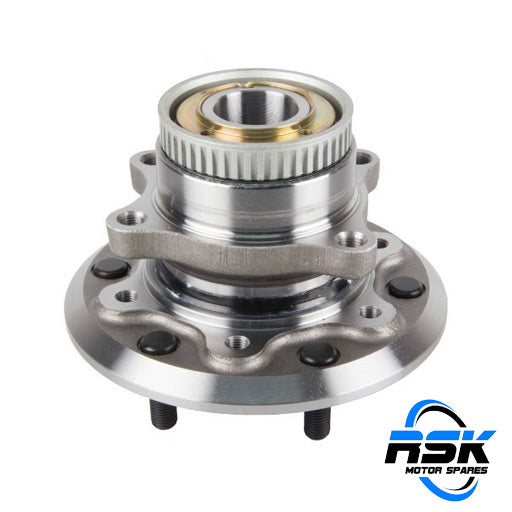

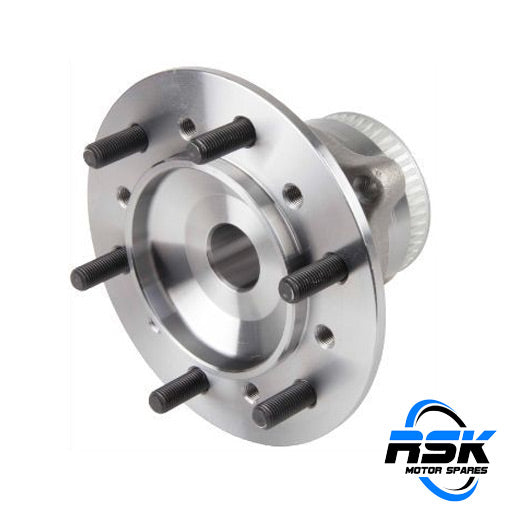

Toyota Quantum - Front Wheel Hub (Complete With Bearing)

Description

This premium front wheel hub and bearing assembly is a complete, ready-to-install unit engineered to original equipment standards for commercial and commuter vehicles. It features a pre-pressed dual-row bearing factory-packed with water-resistant grease and an integrated magnetic ABS encoder ring for flawless signal continuity. Forged from high-tensile steel to withstand heavy payloads and extreme thermal cycles, this 6-stud flanged unit features a secure 4-hole knuckle mount to eliminate wheel vibrations, hub play, and ABS dashboard faults.

Compatible Vehicles

Toyota Quantum I / HiAce (H200) 2.5 D-4D MPV / Bus / Panel Van (Engine: 2KD-FTV, 2005–Present)

Toyota Quantum I / HiAce (H200) 2.7i VVT-i MPV / Bus / Panel Van (Engine: 2TR-FE, 2005–Present)

Specifications

Part Type: Front Wheel Hub and Bearing Assembly (Complete Hub Unit)

Position: Front Axle, Left Hand Side (LHS) or Right Hand Side (RHS)

OEM Reference No: 43560-26010 / 43560-26011 / 43560-V3010 / 43550-26010

Alternative Part Numbers: 54KWH02 (Koyo) / VKBA7497 (SKF) / WH513346 / HA590432

Design Configuration: 3rd Generation Integrated Hub Unit (Flanged Core Assembly)

ABS Sensor Type: Integrated Magnetic ABS Tone Ring / Magnetic Encoder Seal

Inner Diameter: 37.00 mm

Outer Diameter: 90.00 mm

Height / Total Depth: 59.30 mm

Flange Diameter / Seal: 180.00 mm

Disc Pilot Diameter / Gear Teeth Location: 106.00 mm

Pitch Circumference Diameter (PCD): 6 x 139.7 mm (6 x 90 mm Hub-to-Knuckle Mounting Bolt Center)

Number of Mounting Holes: 4 Mounting Holes (To Steering Knuckle)

Wheel Stud Count: 6 Factory-Pressed Wheel Lug Studs

Fast and reliable delivery available across South Africa.
