Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.
  • Toyota Hilux Vigo & Fortuner Outer CV Joint Kit (PJ859199 / 43430-0K020). 29x30 spline. Fast South Africa delivery.
1 1

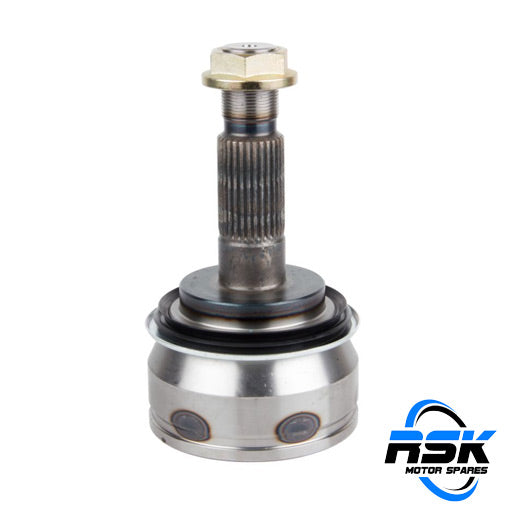

Toyota Hilux Vigo & Fortuner - Outer CV Joint

Toyota Hilux Vigo & Fortuner - Outer CV Joint

R 899.99
R 899.99
Sale Sold out
Shipping calculated at checkout.

Description

This heavy-duty outer Constant Velocity (CV) joint kit is manufactured to exact original equipment specifications to deliver maximum torque transfer from the axle shaft to the front drive wheels under demanding driving conditions. Engineered specifically for 4WD and SUV utility applications, it features a precision-machined outer housing, hardened ball tracks, and a high-strength internal cage designed to accommodate wide steering angles and extreme suspension travel. Replacing a clicking, binding, or worn outer CV joint eliminates severe wheel clunking while turning, dangerous steering feedback, and drive shaft binding off-road.

Compatible Vehicles

Toyota Hilux VII "Vigo" (AN10 / AN20 / AN30 4x4 Models) 2.5 D-4D / 2.7i / 3.0 D-4D (KUN25 / TGN26 / KUN26) (2005–2016)

Toyota Fortuner I (AN50 / AN60 4x4 & 4x2 Models) 2.5 D-4D / 3.0 D-4D / 4.0 V6 (KUN51 / KUN61 / GGN50) (2006–2016)

Application Note: Specifically engineered for Toyota Hilux Vigo 4x4 pickup models and Fortuner SUV platforms. Important Fitment Note: Features a middle circlip groove design with 30 outer splines and 29 inner splines. Includes replacement outer CV joint, rubber boot, high-performance molybdenum grease pack, hub nut, circlip, and heavy-duty boot clamps. Clean the axle shaft end thoroughly and verify spline count before installation. Torque the front wheel hub nut to manufacturer specifications and stake the lock nut securely.

Specifications

Part Type: Wheel Side Outer Drive Shaft CV Joint Assembly

Position: Front Drive Axle Outer Wheel Hub Side (Left or Right)

PartQuip Part Number: PJ859199

OEM Reference No: 43430-0K020

Cross-Reference OEM Nos: 434300K020 / 43430-0K030 / 434300K030 / 43430-0K040 / 434300K040 / 43460-09V10 / 4346009V10 / 43460-09V11 / 4346009V11 / 43460-09V20 / 4346009V20 / 43460-80033 / 4346080033

Alternative Part Numbers: PJ859199 / VPJ859199 / TO-80 / NCV10200 / GSP 859199 / SKF VKJA 5821

Inner Spline Count: 29 Splines

Outer Spline Count: 30 Splines

Oil Seal Diameter: 72.5 mm

Total Diameter: 106 mm

Total Length: 189 mm

Circlip Groove Position: Middle Groove

Material Composition: Forged and Induction Heat-Treated Chrome-Moly Alloy Steel

Assembly Inclusions: Complete Outer CV Joint Kit (Joint Unit, Heavy-Duty Rubber Boot, Moly Grease Pack, Axle Nut, Circlip, and Clamps)

Fast and reliable delivery available across South Africa.
View full details
