Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.

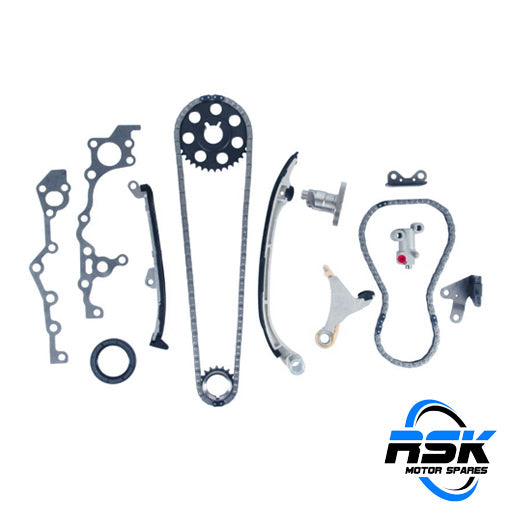

  • Toyota Hilux, Prado, Condor & HiAce 2.7 3RZ-FE Timing Chain Kit (13506-75020). Dual-chain system. Fast South Africa delivery.
1 1

Toyota Hilux, Prado, Condor, HiAce (3RZ-FE) - Timing Chain Kit

Toyota Hilux, Prado, Condor, HiAce (3RZ-FE) - Timing Chain Kit

R 1,999.99
R 1,999.99
Sale Sold out
Shipping calculated at checkout.

Description

This precision-engineered engine timing chain kit is manufactured to exact original equipment specifications to maintain precise valve timing synchronization, balance shaft drive stability, and smooth dual-overhead camshaft operation across Toyota 3RZ-FE engines. Constructed with heavy-duty, heat-treated alloy steel primary and balance shaft chains alongside high-density composite guide channels, this complete dual-chain system directly addresses timing chain elongation, guide rail fracturing, and tensioner failure. Installing this kit eliminates cold-start metallic chain rattle, restores low-RPM engine torque and throttle responsiveness, prevents timing correlation issues, and protects the engine against severe internal damage caused by timing jump or chain failure.

Compatible Vehicles

Toyota Hilux V / VI (N140 / N150 / N160 / N170 Platform) 2.7i 16V 4x2 & 4x4 (3RZ-FE 16V DOHC Engine, 108kW) (1998–2005)

Toyota Land Cruiser Prado (J90 Platform) 2.7i 16V 4x4 (3RZ-FE 16V DOHC Engine, 110kW) (1996–2002)

Toyota Condor (F80 Platform) 2.7i 16V 4x2 & 4x4 (3RZ-FE 16V DOHC Engine, 105kW) (2000–2005)

Toyota HiAce IV (H100 Platform) 2.7i 16V (3RZ-FE 16V DOHC Engine, 105kW) (1998–2006)

Toyota Tacoma I (N140 Platform) 2.7i 16V 4x2 & 4x4 (3RZ-FE 16V DOHC Engine) (1995–2004)

Application Note: Specifically engineered for Toyota 3RZ-FE 2.7L 16-Valve DOHC naturally aspirated 4-cylinder petrol engines used extensively across local Hilux, Prado, Condor, and HiAce ranges. Important Fitment Note: Dual-chain assembly includes primary camshaft timing chain, secondary balance shaft drive chain, primary hydraulic tensioner, secondary balance shaft chain tensioner, fixed guide rails, tensioner slide rails, camshaft sprockets, crankshaft gears, and balance shaft sprockets. Drop the oil sump to thoroughly clear out any plastic debris from old, broken guide rails before installing new components. Always set cylinder #1 to Top Dead Center (TDC) and align the plated timing chain links with the stamped timing marks on all sprockets during reassembly.

Specifications

Part Type: Engine Timing Chain Kit

Position: Front Internal Engine Timing Housing

OEM Reference No: 13506-75020

Cross-Reference OEM Nos: 1350675020 / 13506-75010 / 1350675010 / 13507-75010 / 1350775010 / 13540-75020 / 1354075020 / 13550-75010 / 1355075010 / 13559-75010 / 1355975010 / 13561-75010 / 1356175010

Alternative Part Numbers: TCK-TOY-12 / TCKTOY-12 / TCKTOY12 / FEBI 108397 / INA 559 0157 10 / BGA TC0912FK / FAI TCK199 / DAYCO KTC1174 / OSK T032K / Cloyes 9-0393S

System Type: Dual Chain Assembly (Primary Camshaft Chain & Secondary Balance Shaft Chain)

Material Composition: Forged and Heat-Treated High-Tensile Alloy Steel Chains with High-Impact Composite Guide Rails
