Description

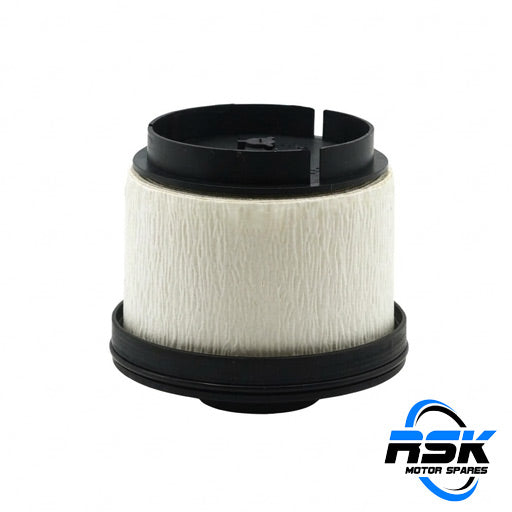

This OEM-specification cartridge wrap diesel fuel filter element is engineered to deliver high-efficiency fuel filtration and water separation for modern high-pressure common rail diesel injection systems. Constructed with multi-layered synthetic media wrapped in a protective shell, it captures microscopic abrasive particulates, rust, and fuel contaminants down to low-micron levels while trapping harmful emulsified water. Replacing a clogged or saturated diesel filter during routine maintenance protects sensitive high-pressure fuel pumps and precision injectors from premature wear, prevents engine power loss, and maintains optimal fuel economy.
Compatible Vehicles
Toyota Hilux VII / VIII 2.5 D-4D & 3.0 D-4D (2KD-FTV / 1KD-FTV Engines, 75kW–120kW) (2005–2016)
Toyota Fortuner I 2.5 D-4D & 3.0 D-4D (2KD-FTV / 1KD-FTV Engines, 106kW–120kW) (2006–2016)
Toyota Quantum / Hi-Ace 2.5 D-4D (2KD-FTV 4-Cyl Engine, 75kW) (2005–Present)
Isuzu KB Series KB250 D-TEQ / KB250D / KB300 D-TEQ (4JK1-TC / 4JJ1-TC Engines, 85kW–130kW) (2013–2020)
Isuzu D-Max (TF) 1.9 TD, 2.5 TD, 3.0 TD (RZ4E-TC / 4JK1-TC / 4JA1-L / 4JJ1-TCX / 4JJ3-TCX Engines) (2018–Present)
Isuzu mu-X (TF) 1.9 TD, 3.0 D, 3.0 TD (RZ4E-TC / 4JJ1-TC / 4JJ3-TCX Engines, 110kW–140kW) (2018–Present)
Mazda BT-50 III (TF) 1.9 TD & 3.0 TD (RZ4E-TC / 4JJ3-TCX Engines, 110kW–140kW) (2021–2024)
Mitsubishi Triton 2.4 Di-D, 2.5 Di-DC (4N15 / 4D56T Engines, 100kW–133kW) (2013–Present)
Mitsubishi Pajero Sport 2.5 D-iD Sport (4D56 4-Cyl Engine, 131kW) (2008–2015)
Fiat Fullback 2.4 Di-D (4N15 4-Cyl Turbo Diesel Engine, 133kW) (2017–Present)
Application Note: Engineered for popular Toyota D-4D, Isuzu D-Teq / D-Max, Mazda BT-50, and Mitsubishi Di-D common rail turbo diesel engines requiring a cartridge wrap fuel filter. Important Fitment Note: Thoroughly clean the fuel filter canister housing and drain trapped water prior to installing the new filter element. Inspect and fit the new rubber sealing O-rings, coating them lightly with clean diesel fuel. Take care not to contaminate the clean side of the filter during assembly. After securing the housing lid, manually prime the fuel system using the hand primer pump until firm before starting the engine to eliminate air pockets.
Specifications
Part Type: Cartridge Wrap Diesel Fuel Filter Element
Position: Diesel Fuel Supply Line / Canister Housing
Part Supplier / Part Number: G1142
Category Code: FIL
OEM Reference Nos: 23390-0L010 / 23390-0L020 / 23390-0L040 / 23390-0L041 / 23300-0L010 / 23300-0L020 / 8981596930 / 8981941190 / 5876150170 / 98194119 / 1770A233 / 1770A321
Cross-Reference OEM Nos: 233900L010 / 233900L020 / 233900L040 / 233900L041 / 233000L010 / 233000L020 / 8981596930 / 8981941190 / 5876150170 / 98194119 / 1770A233 / 1770A321
Alternative Part Numbers: GUD G1142 / FRAM C10353 / MANN-FILTER / MAHLE KX268DECO / BOSCH F026-402-115 / WIX WF8429 / RYCO R2619P / SAKURA F-1111 / FLEETGUARD FF5764 / DONALDSON P505973 / DENSO KS086300-2720 / PURFLUX C802 / UFI 26.045.00 / SOFIMA S6045NE / NIPPARTS N1332096 / AL FILTERS ALG7800/3
Overall Height: 76.0 mm
Outer Diameter: 84.0 mm
Inside Diameter (Top): 32.0 mm
Filter Media Type: High-Efficiency Synthetic Diesel Cartridge Wrap
