Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.
  • Toyota Hilux Vigo & Fortuner 2.5/3.0 D-4D & Petrol Clutch Master Cylinder (CM159.8050 / 31410-0K012). 15.87mm bore. Fast South Africa delivery.
1 1

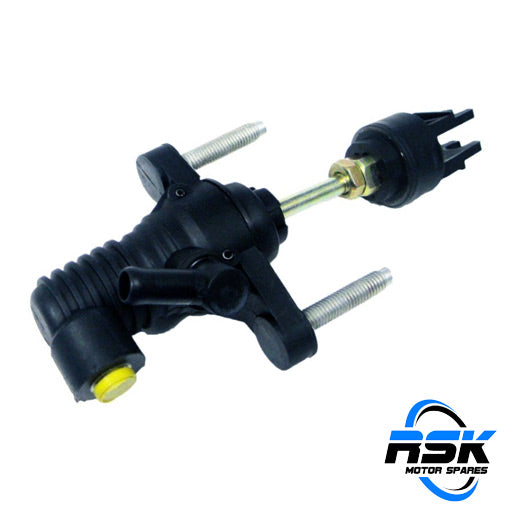

Toyota Hilux Vigo & Fortuner - Clutch Master Cylinder

Toyota Hilux Vigo & Fortuner - Clutch Master Cylinder

R 999.99
R 999.99
Sale Sold out
Shipping calculated at checkout.

Description

This direct-replacement hydraulic clutch master cylinder is manufactured to original equipment standards to restore crisp pedal engagement, smooth gear shifting, and reliable hydraulic line pressure in Toyota Hilux "Vigo" platforms. Built with a durable cast alloy housing, internal precision piston assembly, and high-grade EPDM seals, this unit generates consistent fluid displacement without internal bypass or fluid pressure drop. It acts as a direct replacement for failing factory clutch master cylinders suffering from fluid leaks around the pedal pushrod, a soft or spongy clutch pedal, pedal sinking to the floorboard, or difficulty disengaging manual transmission gears.

Compatible Vehicles

Toyota Hilux "Vigo" (KUN16 / KUN26 Platform) 2.5 D-4D 4x2 & 4x4 (2KD-FTV Turbo Diesel, 75kW–106kW) (2005–2015)

Toyota Hilux "Vigo" (KUN26 Platform) 3.0 D-4D 4x2 & 4x4 (1KD-FTV Turbo Diesel, 120kW) (2005–2015)

Toyota Hilux "Vigo" (TGN16 / TGN26 Platform) 2.0i / 2.7i VVT-i 4x2 & 4x4 (1TR-FE / 2TR-FE Petrol, 100kW–118kW) (2005–2015)

Toyota Fortuner (KUN51 / KUN61 Platform) 2.5 D-4D / 3.0 D-4D 4x2 & 4x4 (2KD-FTV / 1KD-FTV Turbo Diesel) (2005–2015)

Application Note: Specifically engineered for Toyota Hilux Vigo and Fortuner manual transmission models (2005–2015). Important Fitment Note: Bench-bleed the master cylinder before installation to remove air from the internal pressure chamber. Flush the hydraulic system completely with fresh DOT 4 brake fluid. Ensure the clutch pedal free-play and pushrod alignment are properly adjusted according to factory specifications, and perform a full hydraulic line bleed via the slave cylinder bleeder valve before road testing.

Specifications

Part Type: Hydraulic Clutch Master Cylinder

Position: Engine Bay / Firewall Mount

PartQuip Part Number: CM159.8050

OEM Reference No: 31410-0K012 (314100K012)

Cross-Reference OEM Nos: 314100K012 / 31410-0K010 / 314100K010 / 31410-0K011 / 314100K011 / 31410-0K020 / 314100K020

Alternative Part Numbers: CM159.8050 / AISIN CMT-159 / TRW PNB805 / TRW PNB806 / BGA C11332 / LPR 2197 / BLUE PRINT ADT33481

Bore Size: 15.87 mm / 15.9 mm (5/8")

Operating Mode: Hydraulic

Housing Material: Corrosion-Resistant Aluminium Alloy

Assembly Inclusions: Complete Hydraulic Clutch Master Cylinder Unit with Integrated Reservoir Port

Fast and reliable delivery available across South Africa.
