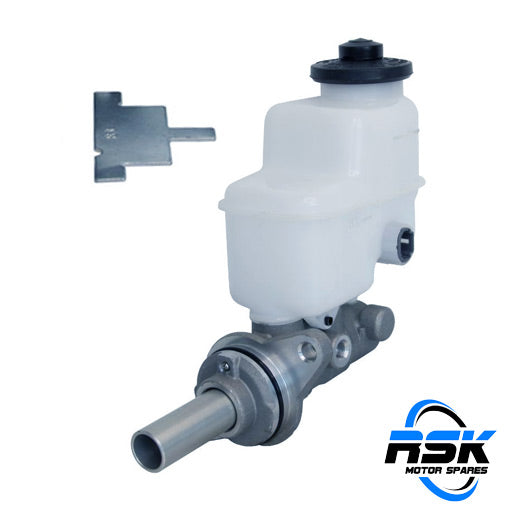

Toyota Hilux Vigo & Fortuner (2006 - 2015) - Brake Master Cylinder
Toyota Hilux Vigo & Fortuner (2006 - 2015) - Brake Master Cylinder
Regular price
R 2,999.99
Regular price
Sale price
R 2,999.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
This precision-engineered brake master cylinder converts brake pedal force into hydraulic pressure, ensuring responsive, balanced stopping power across front disc and rear drum/disc braking systems. Constructed with a high-density, anti-corrosive alloy body and heat-resistant internal rubber seals, this unit withstands extreme hydraulic line pressures and thermal cycling without internal fluid bypass or pressure drops. It serves as a direct replacement for failing factory master cylinders suffering from spongy pedal feel, gradual pedal sink under foot pressure, internal piston seal leakage, or brake fluid contamination. Installing this unit restores firm pedal feel and reliable hydraulic braking safety.
Compatible Vehicles
Toyota Hilux "Vigo" (KUN26 Platform) 3.0 D-4D 4x2 & 4x4 (1KD-FTV Turbo Diesel, 120kW) (2005–2015)
Toyota Fortuner (KUN51 / KUN61 Platform) 3.0 D-4D 4x2 & 4x4 (1KD-FTV Turbo Diesel, 120kW) (2006–2015)
Toyota Fortuner (TGN51 / TGN61 Platform) 4.0 V6 4x2 & 4x4 (1GR-FE 24V DOHC Engine, 175kW) (2006–2015)
Application Note: Specifically engineered for Toyota Hilux Vigo and Fortuner 3.0L D-4D (1KD-FTV) turbo-diesel and 4.0L V6 (1GR-FE) petrol models. Important Fitment Note: Bench-bleed the new master cylinder to purge trapped air from the primary and secondary internal fluid circuits before mounting it to the brake booster. Flush the entire braking system thoroughly with fresh DOT 4 hydraulic brake fluid during installation. Ensure the pushrod clearance between the vacuum booster and master cylinder piston is correctly aligned, and perform a complete 4-wheel brake line bleeding procedure prior to road testing.
Specifications
Part Type: Hydraulic Brake Master Cylinder
Position: Engine Bay / Mounted to Brake Vacuum Booster
PartQuip Part Number: BM222.8001
OEM Reference No: 47201-42340 (4720142340)
Cross-Reference OEM Nos: 4720142340 / 47201-09210 / 4720109210 / 47201-0K040 / 472010K040
Alternative Part Numbers: BM222.8001 / AISIN BMT-390 / TRW PML704 / HERTH+BUSS J3102186 / KAVO BMC-3510 / ABS 41088
Bore Diameter: 22.22 mm (7/8")
Number of Ports: 2-Port Hydraulic Line Outlet
Primary Thread Size: M10 x 1.0
Housing Material: High-Strength Aluminium Alloy
Assembly Inclusions: Primary Hydraulic Brake Master Cylinder Unit
