Toyota Aygo and Yaris (1KR-FE Engine) - Full Gasket Set Type 2

Description

This premium engine full overhaul gasket set is manufactured to strict factory original equipment standards to provide a complete, robust sealing solution during comprehensive engine rebuilds. Engineered with advanced Multi-Layer Steel (MLS) technology for the main cylinder head layer and high-temperature, oil-resistant elastomeric polymers for auxiliary faces, this kit reliably contains massive combustion pressures and maintains absolute fluid isolation. It contains every critical static seal, valve stem seal, and dynamic main crankshaft oil seal required to completely refresh the power unit from the valvetrain down to the structural oil pan. Replacing degraded factory seals with this professional-grade overhaul kit completely eliminates chronic oil weeping, pressurized coolant cross-contamination, intake/exhaust manifold tracking, and external fluid leaks common on high-utilization passenger vehicles and city hatchbacks.

Compatible Vehicles

Toyota Aygo 1.0 / Wild / Fresh (AB10 Platform, 1KR-FE Engine, 2005–2014)

Toyota Yaris II 1.0 T1 / Zen (P9 Platform, 1KR-FE Engine, 2006–2011)

Toyota Yaris III 1.0 / Xi / Xs (P13 Platform, 1KR-FE Engine, 2011–2018)

Application Note: Specifically engineered for the lightweight, high-efficiency 3-cylinder 1.0-litre 12V DOHC petrol engine series (Toyota 1KR-FE family) utilized extensively across South African city cars. When performing a full engine refresh, ensure both the aluminum block and cylinder head deck surfaces are thoroughly prepared, micro-finished, and completely free of old residue. Always follow the manufacturer’s exact multi-stage torque and angle rotation sequence using new cylinder head bolts to secure an optimal, leak-free seal.



Specifications

Part Type: Engine Mechanical Overhaul Full Gasket & Seal Set

Position: Complete Engine Block Assembly (Cylinder Head, Block, Manifolds, and Oil Pan)

OEM Reference No: 04111-0Q010 / 041110Q010

Cross-Reference OEM Nos: 04111-0Q020 / 04111-0Q021 / 04111-0Q022 / 04111-B1860

Alternative Part Numbers: FG9310 (Payen) / 50257000 (Ajusa) / 01-53425-01 (Reinz) / 687.840 (Elring) / ADT362144 (Blue Print)

Gasket Material Composition: Premium Multi-Layer Steel (MLS), High-Durometer Viton/NBR Rubber, Heat-Stabilized Composite Matrix

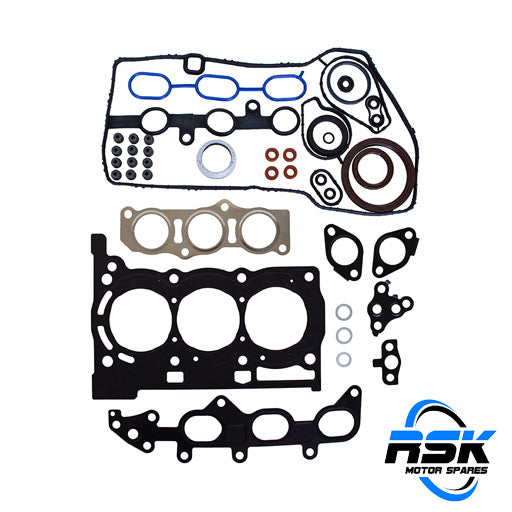

Kit Inclusions: Multi-Layer Steel (MLS) Cylinder Head Gasket, Rocker/Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket Seals, Exhaust Manifold Gaskets, Front Crankshaft Oil Seal, Rear Main Crankshaft Oil Seal, Spark Plug Tube Seals, Timing Cover Seals, Water Pump & Thermostat Gaskets, and Auxiliary O-Rings
