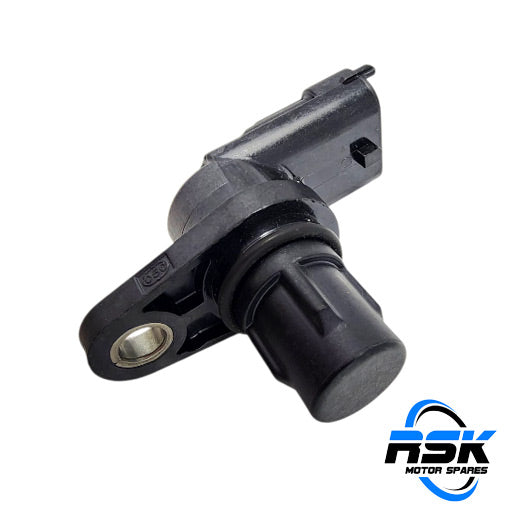

Suzuki Swift, Jimny, Ertiga & Fronx - Camshaft Position Sensor (3 Pin)

Description

This premium 3-pin Camshaft Position Sensor (CMP) utilizes high-performance Hall Effect technology to track camshaft rotation. Specifically configured for modern Suzuki K-series engines and their shared Toyota platform counterparts, it delivers instantaneous digital tracking to the ECU. This manages variable valve timing (VVT) and sequential fuel delivery, correcting rough idling, starting delays, or illumination of the engine check light.

⚡ Non-Refundable: Electrical item — check carefully before buying.

Compatible Vehicles

Suzuki Baleno 1.4 (2016–2022)

Suzuki Ertiga 1.5 (K15B Engine, 2019–Present)

Suzuki Fronx 1.5 (K15B Engine, 2023–Present)

Suzuki Grand Vitara 1.5 (K15B Engine, 2023–Present)

Suzuki Ignis 1.2 (2017–Present)

Suzuki Jimny 1.5 (JB74 / K15B Engine, 2019–Present)

Suzuki Swift (2018–Present)

Suzuki Vitara 1.4 Turbo & 1.6 (2015–Present)

Specifications

OEM Reference No: 33220-86P00 / 33220-57R00 / 3322086P00000

Alternative Part Numbers: 0232103148 / 0 232 103 148 (Bosch)

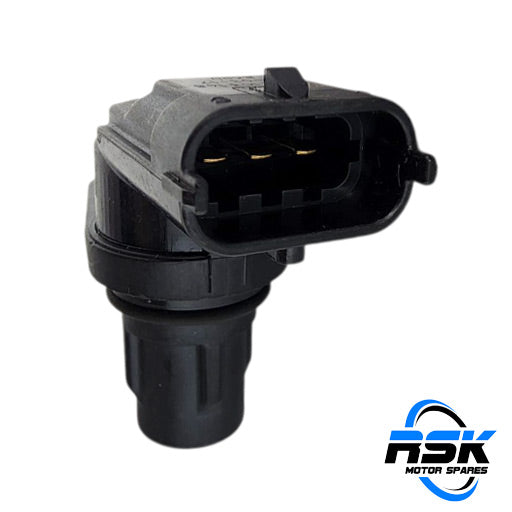

Connection Type: 3-Pin Connector

Sensor Type: Hall Effect Sensor

Engine Codes: K15B, K14C, K12M, K14D

Function: Camshaft Phase Monitoring and VVT Synchronization
