Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.
  • Opel Astra F, Corsa B, Kadett, Corsa Utility & Chevrolet Corsa Utility Front Wheel Hub (90105315). Fast South Africa delivery.
1 1

Opel Astra, Corsa, Utility - Front Wheel Hub

Opel Astra, Corsa, Utility - Front Wheel Hub

R 599.99
R 0.00 R 599.99
Sale Sold out
Shipping calculated at checkout.

Description

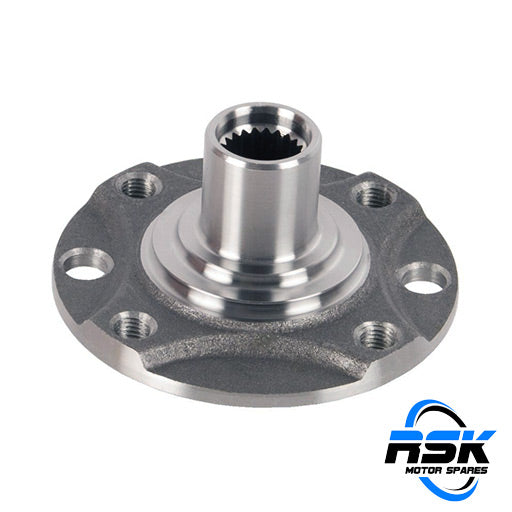

This precision-machined front wheel hub is manufactured to original equipment standards to provide a rigid, balanced mounting interface for the front brake disc rotor and wheel assembly. Forged from high-tensile carbon steel and induction heat-treated for superior fatigue resistance, this hub houses the front drive axle splines and rotates smoothly inside the wheel bearing assembly. Replacing a damaged, distorted, or worn front wheel hub eliminates wheel wobble, high-speed steering wheel vibration under braking, hub flange runout, and severe grinding noises caused by spinning bearing inner races or stripped wheel bolt threads.

Compatible Vehicles

Opel Ascona B / C 1.3, 1.6, 1.8, 2.0 (1975–1988)

Opel Astra F (T92 Platform) 1.4i, 1.6i, 1.8i, 2.0i, 1.7 D / TD (1991–1998)

Opel Corsa B (S93 Platform) 1.0 12V, 1.2i, 1.4i, 1.6i, 1.5 TD (1993–2002)

Opel Kadett D / E 1.2, 1.3, 1.4, 1.6, 1.8, 2.0 GSi (1979–1991)

Opel Monza A / B 2.0, 2.5, 3.0 (1978–1986)

Opel Corsa B Utility LDV / Pickup 1.3i, 1.4i, 1.6i, 1.7 D (1997–2003)

Chevrolet Corsa Utility 1.4i, 1.8i, 1.7 DTi (2003–2010)

Application Note: Specifically engineered for GM / Opel small-to-mid platform vehicles equipped with 4-lug wheel hubs and 22-spline drive axles. Important Fitment Note: Thoroughly inspect the front wheel bearing journal on the steering knuckle during installation. If replacing a hub due to bearing failure or inner race spin, press in a brand-new double-row wheel bearing simultaneously. Clean all spline surfaces and apply anti-seize lubricant lightly. Tighten the central CV axle nut strictly to GM torque specifications using a calibrated torque wrench, then secure with a new split cotter pin or stake notch—never rely on impact guns to seat the hub.

Specifications

Part Type: Front Axle Wheel Hub

Position: Front Axle / Driven Wheel (Left and Right Side Compatible)

Part Supplier Code: KWH-OPL-001

OEM Reference No: 90105315 / 90498304

Cross-Reference OEM Nos: 90105315 / 90498304 / 318105 / 318107 / 90235315 / 90251532 / 90142161

Alternative Part Numbers: FEBI 03173 / SWAG 40 90 3173 / METZGER 0904001 / TOPRAN 200 488 / MEYLE 614 105 0003 / OPTIMAL 04-P015 / NTY KPR-OP-001 / MAPCO 46700

Rim Hole Count: 4 Threaded Wheel Bolt Holes (M12 x 1.5)

Pitch Circle Diameter (PCD): 4 x 100 mm

Drive Axle Internal Spline Count: 22 Splines

Hub Outer Diameter: 120 mm

Bearing Journal Diameter: 34 mm

Material: High-Tensile Forged Carbon Steel

Assembly Inclusions: Bare Front Axle Wheel Hub Unit (Press-in Wheel Bearing Sold Separately)

Fast and reliable delivery available across South Africa.
