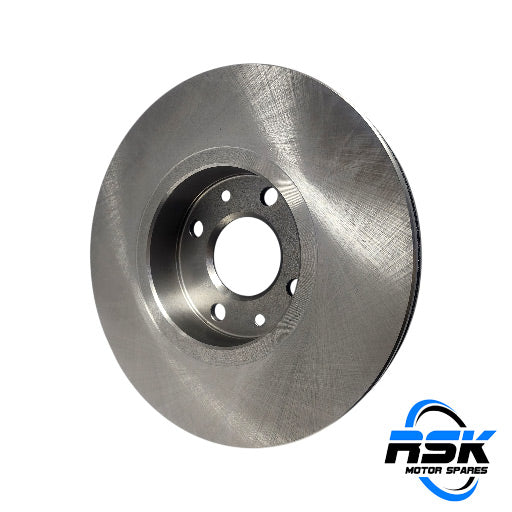

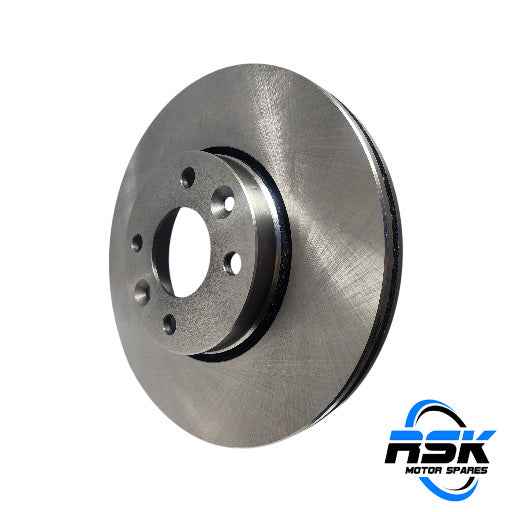

Nissan NP200 & Renault Sandero - Front Brake Disc

Description

This premium front ventilated brake disc is manufactured to the exact original equipment specifications required for light commercial vehicles and passenger hatchbacks. Designed with an internally dual-vented core, it actively draws cooling airflow across the friction ring to rapidly dissipate extreme heat. This advanced thermal regulation is critical for light commercial workhorses carrying maximum payloads, successfully preventing structural distortion (warping), hot-spotting, brake fade, and pad glazing. Cast from high-density grey iron, it provides exceptional durability, immediate pedal response, and ultra-quiet stop operation.

Compatible Vehicles

Nissan NP200 1.6i & 1.5 dCi (All Models, 2008–Present)

Renault Logan I / II 1.4, 1.6 & 1.5 dCi (2004–2018)

Renault Sandero I / II 1.4, 1.6 & 900cc Turbo (Select Models, 2009–2021)

Specifications

Part Number: DR 6000

OEM Reference No: 4020600Q0C / 40206-00Q0C / 7701207795 / 8201464598

Alternative Part Numbers: DF4110 (TRW) / 09.9078.10 (Brembo) / 0986478514 (Bosch) / DDF1123 (Ferodo)

Position: Front Axle

Type: Internally Ventilated Disc (Fv)

Diameter: 260.00 mm

Thickness (Path): 22.00 mm

Minimum Thickness: 20.00 mm

Height: 44.00 mm

Spigot Diameter (Hub Centre): 61.05 mm

Pitch Circle Diameter (PCD): 100.00 mm

Bolt Hole Count: 4 Hole Configuration
