Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.

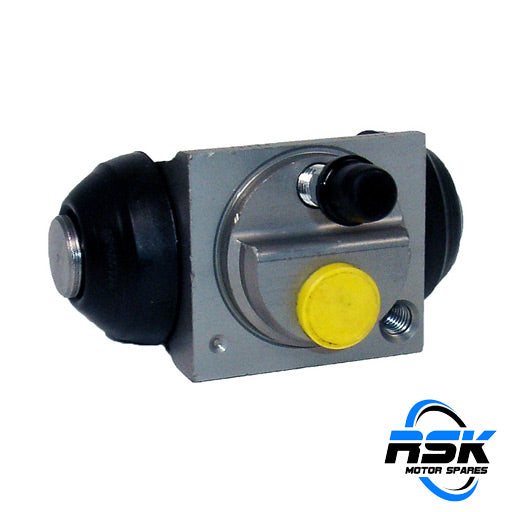

Nissan NP200, Renault Logan & Kangoo - Rear Brake Wheel Cylinder
Nissan NP200, Renault Logan & Kangoo - Rear Brake Wheel Cylinder
Regular price
R 499.99
Regular price
Sale price
R 499.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
This direct-replacement rear hydraulic brake wheel cylinder is manufactured from lightweight, high-strength cast aluminium alloy to original equipment specifications. It converts hydraulic fluid line pressure into mechanical force, expanding the rear brake shoes against the internal drum surface for responsive, balanced rear axle braking and reliable parking brake holding force. Constructed with high-density heat-resistant EPDM rubber seals and internal pistons, this corrosion-resistant unit prevents fluid leakage and air ingress. Replacing a worn or sticking wheel cylinder restores firm brake pedal height, eliminates brake fluid loss onto rear shoe linings, prevents vehicle pulling under braking, and remedies uneven rear shoe wear.
Compatible Vehicles
Nissan NP200 (F91 / U91 Platform) 1.6i 8V / 16V (K7M / K4M Engines, 64kW–77kW) (2008–Present)
Nissan NP200 (F91 / U91 Platform) 1.5 dCi Turbo Diesel (K9K Engine, 63kW) (2008–Present)
Renault Logan I / II (LS / KS Platform) 1.4i / 1.6i (K7J / K7M Petrol Engines) (2004–2015)
Renault Kangoo I (KC0/1 / FC0/1 Platform) 1.2i / 1.4i / 1.6 16V / 1.5 dCi / 1.9 D (1997–2010)
Application Note: Specifically engineered for Nissan NP200, Renault Logan, and Renault Kangoo models equipped with rear drum brake systems and lightweight aluminium wheel cylinders. Important Fitment Note: Always replace wheel cylinders in axle pairs (left and right) to ensure equal hydraulic pressure distribution across the rear axle. Thoroughly clean and inspect the drum interior, backing plate, and brake shoe friction material. If brake fluid has contaminated existing shoes, replace the shoe set concurrently. Always bleed the rear hydraulic circuit using fresh DOT 4 fluid to remove air bubbles following cylinder installation.
Specifications
Part Type: Rear Hydraulic Brake Wheel Cylinder
Position: Rear Axle Drum Brake Assembly (Left-Hand Side / Right-Hand Side)
PartQuip Part Number: WC222.7030
Bore Size / Inner Diameter: 22.2 mm / 22.23 mm (7/8")
OEM Reference Nos: 44126-3507R / 6001549706 / 7701070956
Cross-Reference OEM Nos: 441263507R / 6001549706 / 7701070956 / 44100-00Q0A / 4410000Q0A
Alternative Part Numbers: WC222.7030 / LPR 5005 / ATE 24.3222-1740.3 / TRW BWF318 / FERODO FWC3333 / BREMBO A 12 822 / SAMKO C31189
Housing Material: Lightweight Cast Aluminium Alloy
Hydraulic Inlet Thread Size: M10 x 1.0 Female Thread
Assembly Inclusions: Complete Aluminium Rear Wheel Cylinder Unit with Integrated Bleeder Valve and Dust Boots
