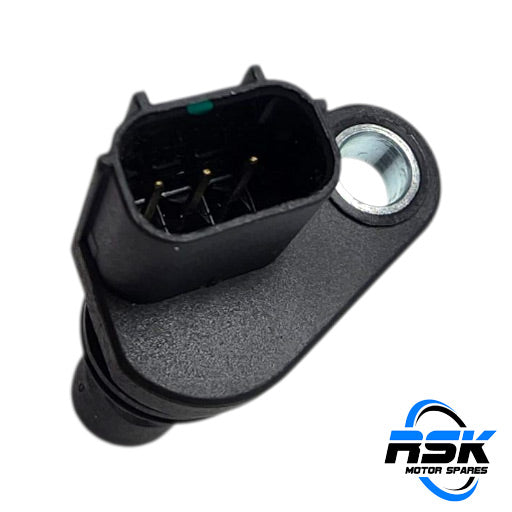

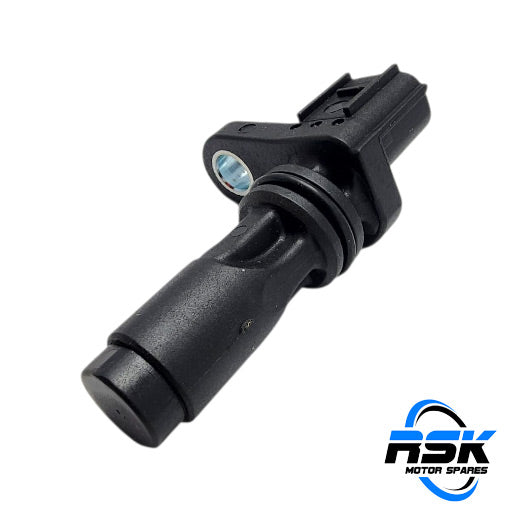

Nissan NP300, Navara, Pathfinder - Crankshaft Position Sensor (3 Pin)

Description

This premium-grade engine crankshaft/camshaft position sensor is engineered to original equipment standards to manage engine timing configurations accurately. Acting as a critical component for engine management, it reads the rotational velocity and precise position of the crankshaft or camshaft to relay critical data back to the Engine Control Unit (ECU). This data ensures optimized fuel injection cycles, crisp ignition timing, and overall fuel efficiency. Built with premium internal magnetic circuitry and heavy-duty casing, it resists thermal degradation and oil exposure common in high-mileage light commercial diesel platforms.

⚡ Non-Refundable: Electrical item — check carefully before buying.

Compatible Vehicles

Nissan NP300 / Hardbody 2.5 dCi (YD25 Engine, 2008–2021)

Nissan Navara (D40) 2.5 dCi (YD25 Engine, 2005–2015)

Nissan Pathfinder (R51) 2.5 dCi (YD25 Engine, 2005–2013)

Nissan NV350 / Urvan 2.5 dCi (YD25 Engine, 2012–Present)

Isuzu KB / D-Max 2.5 DTEQ & 3.0 DTEQ (Select 4JK1 / 4JJ1 Engines)

Specifications

Part Number: 23731-EC00A / 23731EC00A

OEM Reference No: 23731-EC00A / 23731-EC00B / 23731-AW410

Cross-Reference Interchange: 8-97258-523-0 (Isuzu) / 949979-1190 (Denso) / 23731-EC01A

Position: Crankshaft / Camshaft Case Housing Mount

Sensor Type: Magnetic Induction / Hall Effect Sensor

Pin Configuration: 3-Pin Electrical Connector Terminal

Voltage Requirement: 5V Reference Output Loop

Fast and reliable delivery available across South Africa.
