Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.
  • Nissan Hardbody D21/D22 & NP300 2.0 NA20 Timing Chain Kit (13028-85G00). Forged alloy steel. Fast South Africa delivery.
1 1

Nissan Hardbody & NP300 (NA20) - Timing Chain Kit

Nissan Hardbody & NP300 (NA20) - Timing Chain Kit

R 899.99
R 899.99
Sale Sold out
Shipping calculated at checkout.

Description

This precision-engineered engine timing chain kit is manufactured to exact original equipment specifications to maintain precise valve timing alignment and smooth single-overhead camshaft drive operation across Nissan NA20 engines. Constructed with heavy-duty, heat-treated alloy steel links and low-friction, high-density composite guide channels, this complete replacement kit directly addresses timing chain elongation, guide rail wear, and hydraulic tensioner degradation. Installing this kit eliminates cold-start chain clatter, restores smooth engine idle and low-end throttle response, prevents ignition timing drift, and guards against catastrophic valve damage caused by timing jump or chain failure.

Compatible Vehicles

Nissan Hardbody / NP300 (D22 Platform) 2.0 / 2.0i (NA20S / NA20 8V SOHC Engine) (1998–2003)

Nissan Hardbody (D21 Platform) 2.0 (NA20S 8V SOHC Engine) (1990–1999)

Nissan Pickup / Cabstar (D21 / D22 Platform) 2.0 (NA20S 8V SOHC Engine) (1990–2003)

Application Note: Specifically engineered for Nissan NA20S / NA20 2.0L 8-Valve SOHC naturally aspirated 4-cylinder petrol engines used in commercial and light utility vehicles. Important Fitment Note: Includes primary timing chain, hydraulic timing chain tensioner, fixed guide rail, tensioner slide rail, camshaft timing sprocket, and lower crankshaft gear. Thoroughly clean the timing cover mating surfaces and drop the engine oil sump to clean out any old broken plastic guide rail fragments prior to assembly. Always align the bright timing marks on the chain links with the punch marks on the sprockets at Top Dead Center (TDC) during installation.

Specifications

Part Type: Engine Timing Chain Kit

Position: Front Internal Engine Timing Housing

OEM Reference No: 13028-85G00

Cross-Reference OEM Nos: 1302885G00 / 13028-85G01 / 1302885G01 / 13070-85G00 / 1307085G00 / 13085-85G00 / 1308585G00 / 13091-85G00 / 1309185G00

Alternative Part Numbers: TCK-NIS-08 / TCKNIS-08 / TCKNIS08 / BGA TC0275K / FAI TCK7 / DAYCO KTC1084 / OSK N118K / Cloyes 9-4175S

Material Composition: Heat-Treated High-Tensile Forged Alloy Steel Chain with Reinforced Composite Guide Rails

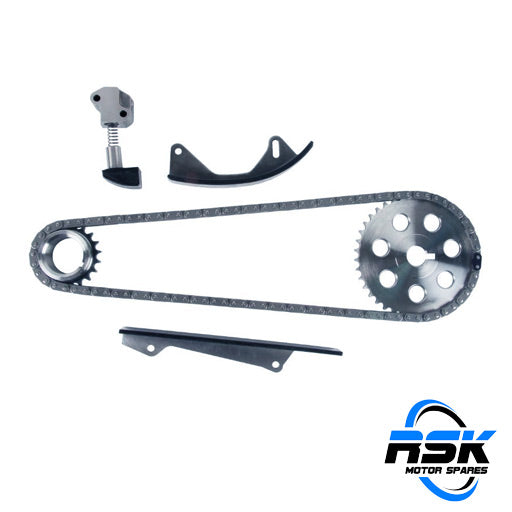

Assembly Inclusions: Primary Timing Chain, Hydraulic Tensioner Assembly, Fixed Guide Rail, Tensioner Slide Rail, Camshaft Sprocket, Crankshaft Gear, and Hardware

Fast and reliable delivery available across South Africa.
View full details
