Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.

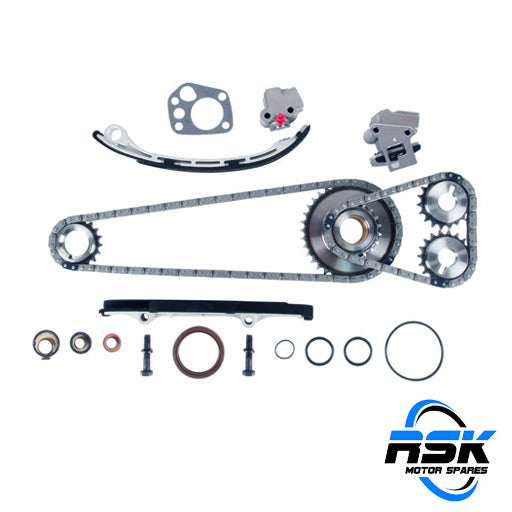

Nissan Hardbody & NP300 (16V KA24DE) - Timing Chain Kit
Nissan Hardbody & NP300 (16V KA24DE) - Timing Chain Kit
Regular price
R 1,999.99
Regular price
Sale price
R 1,999.99
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Description
This precision-engineered engine timing chain kit is manufactured to exact original equipment specifications to maintain precise valve synchronization and smooth dual-overhead camshaft drive operation across Nissan KA24DE 16-valve engines. Constructed with heavy-duty, heat-treated alloy steel links and low-friction, high-density composite guide channels, this dual-chain replacement kit directly addresses timing chain elongation, plastic guide rail disintegration, and hydraulic tensioner wear. Replacing the timing chain assembly eliminates metallic engine clatter on cold starts, restores responsive low-end torque, prevents timing correlation ECU error codes, and protects the engine against severe internal damage caused by timing jump or chain failure.
Compatible Vehicles
Nissan Hardbody (D22 Platform) 2.4i 16V / 2.4 4x2 & 4x4 (KA24DE 16-Valve DOHC Engine, 110kW) (1998–2008)
Nissan NP300 Hardbody (D22 Platform) 2.4i 16V / 2.4 4x2 & 4x4 (KA24DE 16-Valve DOHC Engine, 105kW / 110kW) (2008–2021)
Nissan Frontier / Xterra (D22 / WD22 Platform) 2.4i 16V 4x2 & 4x4 (KA24DE 16-Valve DOHC Engine) (1998–2004)
Nissan Pickup / Cabstar (D22 Platform) 2.4i 16V (KA24DE 16-Valve DOHC Engine) (1998–2008)
Application Note: Specifically engineered for Nissan KA24DE 2.4L 16-Valve DOHC naturally aspirated 4-cylinder petrol engines. (Note: Does not fit earlier KA24E 12-Valve SOHC engine variants). Important Fitment Note: Dual-chain engine system includes upper camshaft timing chain, lower crankshaft timing chain, upper hydraulic tensioner, lower hydraulic tensioner, fixed guide rails, tensioner slide rails, and timing sprockets. Clean the front timing cover thoroughly and remove the oil sump to clear out any old broken plastic guide fragments prior to reassembly. Align the plated timing links on the chains with the corresponding punch marks on the camshaft and crankshaft sprockets at Top Dead Center (TDC) during installation.
Specifications
Part Type: Engine Timing Chain Kit
Position: Front Internal Engine Timing Housing
OEM Reference No: 13028-F4300
Cross-Reference OEM Nos: 13028F4300 / 13028-53F00 / 1302853F00 / 13028-53F10 / 1302853F10 / 13070-F4300 / 13070F4300 / 13070-53F00 / 1307053F00 / 13085-F4300 / 13085F4300 / 13091-F4300 / 13091F4300
Alternative Part Numbers: TCK-NIS-05 / TCKNIS-05 / TCKNIS05 / FEBI 32803 / INA 559 0055 10 / BGA TC0270K / FAI TCK6 / DAYCO KTC1083 / RUVILLE 3468004 / OSK N116K / Cloyes 9-4172S
System Type: Dual Chain Assembly (Upper Camshaft Chain & Lower Crankshaft Chain)
Material Composition: Heat-Treated High-Tensile Forged Steel Chains with High-Impact Composite Guide Rails
Assembly Inclusions: Upper Timing Chain, Lower Timing Chain, Upper Hydraulic Tensioner, Lower Hydraulic Tensioner, Fixed Guide Rails, Tensioner Slide Rails, Camshaft Sprockets, Crankshaft Gear, and Installation Fasteners
Fast and reliable delivery available across South Africa.
