Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.

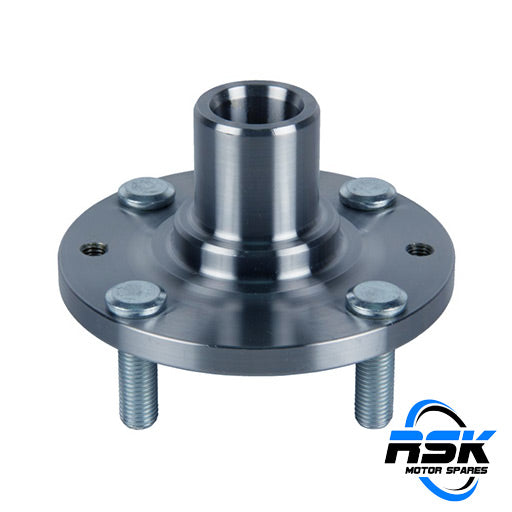

  • Kia Pride, Rio I, Mazda 121 & Ford Festiva Front Wheel Hub (OK30A-33-060). Fast South Africa delivery.
1 1

Kia Rio MK1 - Front Wheel Hub

Kia Rio MK1 - Front Wheel Hub

R 499.99
R 0.00 R 499.99
Sale Sold out
Shipping calculated at checkout.

Description

This precision-machined front wheel hub is manufactured to original equipment specifications to provide a rigid mounting surface for the front brake disc rotor and road wheel assembly while housing the drive axle splines. Forged from high-grade carbon steel and heat-treated for enhanced fatigue resistance, this wheel hub eliminates rotational runout and vibration. Replacing a warped, worn, or splineless front hub eliminates wheel wobbling, persistent front-end vibration under braking, uneven rotor wear, and severe grinding noises caused by inner bearing track gauling.

Compatible Vehicles

Kia Rio I / Rio L / Rio LX (DC Platform) 1.3i / 1.5i 16V (A3E / A5D / BF Engines, 60kW–72kW) (1998–2005)

Mazda 121 I / II (DA / DB Platform) 1.1 / 1.3i (B1 / B3 Engines) (1987–1997)

Kia Pride (DA / KK Platform) 1.3i (B3 / B3E Engines, 44kW–53kW) (1998–2004)

Application Note: Specifically engineered for Kia Pride, Kia Rio I (DC), Mazda 121, and Ford Festiva front-wheel-drive platforms. Important Fitment Note: Clean the drive axle spline shaft and hub housing thoroughly prior to installation. Inspect the front wheel bearing press-fit race surface in the steering knuckle—if replacing the hub due to bearing failure, always press in a brand-new front wheel bearing set at the same time. Never use impact wrenches to draw the drive axle CV shaft into the hub splines; torque the central axle hub nut strictly to factory specifications using a calibrated torque wrench and stake the locking flange securely.

Specifications

Part Type: Front Wheel Hub Shaft Assembly

Position: Front Axle / Driven Wheel (Left and Right Side Compatible)

Part Supplier Code: KWH-KIA-001

OEM Reference No: OK30A-33-060 / OK30A33060

Cross-Reference OEM Nos: OK30A-33-060 / OK30A33060 / B001-33-060 / B00133060 / B001-33-060A

Alternative Part Numbers: NTY KPR-KA-001 / FEBEST 0582-DCF / ASHIKA 44-10301 / JAPANPARTS KK-10301 / JAPKO 410301

Bearing Inner Diameter: 38 mm

Hub Outer Diameter: 122 mm

Overall Height: 72.4 mm

Pitch Circle Diameter (PCD): 4 x 100 mm

Number of Wheel Studs: 4

Drive Axle Spline Count: 24 Splines

Spigot / Center Bore Diameter: 54 mm

Material: High-Tensile Forged Carbon Steel

Assembly Inclusions: Complete Bare Front Axle Wheel Hub (Press-in Wheel Bearing Sold Separately)
