Isuzu KB Series, D-Max- Crankshaft Position Sensor (3-Pin)

Description

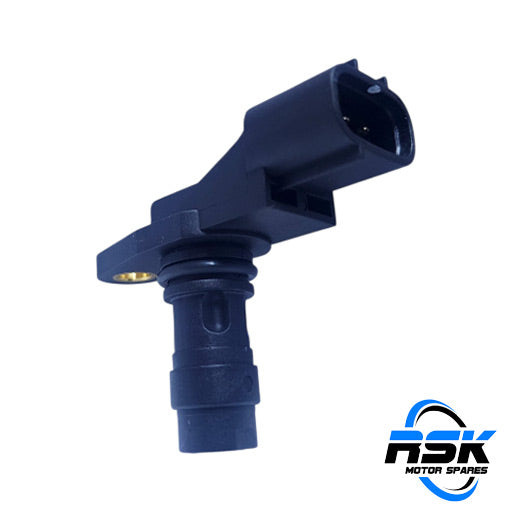

High-performance Crankshaft Position Sensor (Ref: 601288) engineered for the high-torque demands of Isuzu’s D-TEQ and D-Max diesel engines.

This 3-pin sensor is a critical engine management component that monitors the rotational speed and exact position of the crankshaft. It provides the Engine Control Unit (ECU) with the data necessary for precise fuel injection timing, which is vital for the performance of common-rail diesel engines. Built to withstand the extreme heat and vibration typical of heavy-duty commercial use, it ensures stable idling and prevents common "no-start" or stalling issues. It is an ideal replacement for maintaining the reliability of Isuzu workhorses under South African operating conditions.

⚡ Non-Refundable: Electrical item — check carefully before buying.

Compatible Vehicles

Isuzu KB Series (KB250 D-TEQ / KB300 D-TEQ / 2007 – 2013)

Isuzu D-Max (2.5 D-TEQ / 3.0 D-TEQ / 4JK1 / 4JJ1 / 2007 – 2020)

Isuzu MU-X (3.0L 4JJ1 / 2012 – 2020)

Isuzu N-Series (NPR / NQR / 3.0 Diesel / 2007 – 2020)

Specifications

Reference No.: 601288

OEM Reference No.: 8973121081 / 8973121080 / 97312108

Alternative Part Numbers: 8-97312108-1

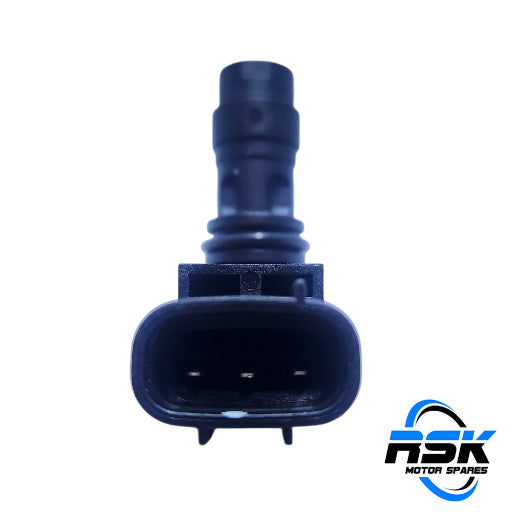

Connector: 3-Pin Sealed Interface

Engine Compatibility: 4JJ1 (3.0L) / 4JK1 (2.5L) Diesel

Sensor Type: Hall Effect / Active Sensor

Inclusions: Includes cable and seal ring (where applicable)

Fast and reliable delivery available across South Africa.
