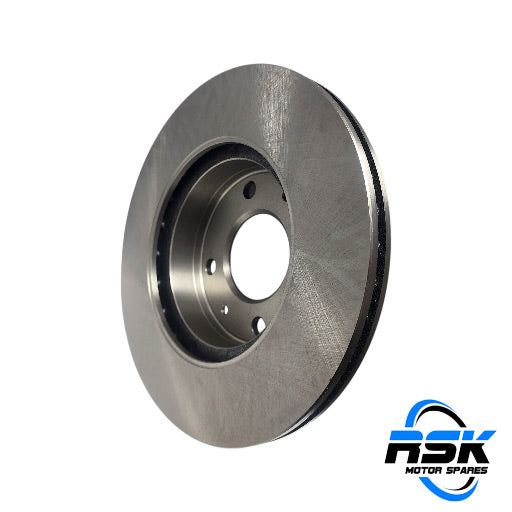

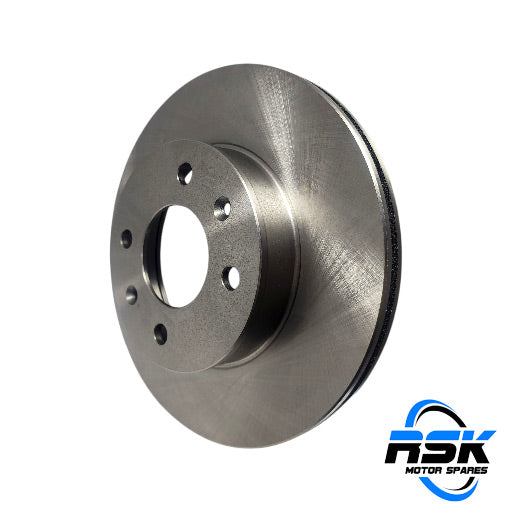

Kia Picanto & Hyundai i10 - Front Brake Disc

Description

This premium front ventilated brake disc is precision-machined to match the exact original equipment criteria for popular compact city cars. Built with an internally dual-vented core, it actively channels airflow across the friction ring to rapidly dissipate heat build-up caused by frequent stop-and-go urban driving. This thermal regulation safeguards against structural distortion (warping), brake fade, and pad glazing. Cast from high-density grey iron, it provides a highly stable friction coefficient, smooth pedal response, and reliable stopping power.

Compatible Vehicles

Hyundai i10 Mk1 (PA) 1.1L & 1.2L (Models with 241mm Front Discs, 2007–2013)

Hyundai i10 Mk2 (IA / BA) 1.0L & 1.2L (2014–2019)

Kia Picanto Mk1 (SA) 1.0L & 1.1L (Models with Vented Front Discs, 2004–2011)

Kia Picanto Mk2 (TA) 1.0L & 1.2L (2011–2017)

Kia Picanto Mk3 (JA) 1.0L & 1.2L (Select Base / Style Variants, 2017–Present)

Specifications

Part Number: DR 6065

OEM Reference No: 517120X500 / 5171207500 / 51712-0X500 / 51712-07500

Alternative Part Numbers: DF4458 (TRW) / 09.9503.10 (Brembo) / 0986479286 (Bosch) / DDF1268 (Ferodo)

Position: Front Axle

Type: Internally Ventilated Disc (Fv)

Diameter: 241.00 mm

Thickness (Path): 18.00 mm

Minimum Thickness: 16.00 mm

Height: 48.80 mm

Spigot Diameter (Hub Centre): 62.20 mm

Pitch Circle Diameter (PCD): 100.00 mm

Bolt Hole Count: 4 Hole Configuration
