Ford Ranger, Transit, Mazda BT-50 (2.2 TDCi) Glow Plug Relay (7 Pin)

Ford Ranger, Transit, Mazda BT-50 (2.2 TDCi) Glow Plug Relay (7 Pin)

R 1,799.99
R 1,799.99
Sale Sold out
Shipping calculated at checkout.

Description

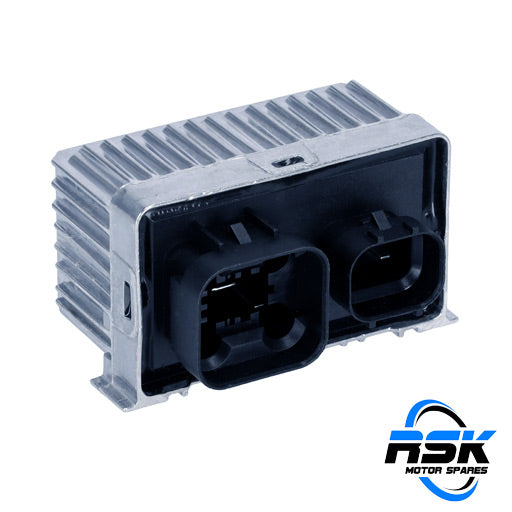

This direct-replacement glow plug control unit / pre-heating relay module is manufactured to original equipment standards to manage the pre-heating and post-heating cycles of glow plugs in modern diesel engines. Designed with an integrated cooling heatsink and solid-state switching circuitry, it precise-regulates electrical current delivered to each individual glow plug based on engine coolant temperature and ECU commands.

Replacing a failed module resolves extended cranking, non-starting in cold weather, excessive white exhaust smoke on startup, glowing coil fault lights, and glow plug circuit error codes (P0670 / P0671–P0674).

Compatible Vehicles

Ford Transit MK7 / MK8 (V362 / V363) 2.2 TDCi (2011–2018)

Ford Transit Custom / Tourneo Custom 2.2 TDCi (2012–2016)

Ford Ranger (TKE) 2.2 TDCi (2011–2019)

Mazda BT-50 (UP / UR Platform) 2.2 MZ-CD (2011–2019)

Application Note: Engineered specifically for 2.2L TDCi / HDi / Duratorq 4-cylinder diesel engines. Fitment Verification: Always confirm physical connector style prior to installation. This module features a 9-pin main plug configuration (alongside a 2-pin power supply socket). Disconnect battery power before replacing the relay to prevent electrical damage to the main ECU.

Specifications

Part Type: Glow Plug Control Relay / Pre-Heating Control Unit

Position: Engine Bay Mounting Bracket

Part Supplier Code: CC11-12B533-AB / CC1112B533AB

OEM Reference No: CC11-12B533-AB (CC1112B533AB)

Cross-Reference OEM Nos: 1719477 / 1724769 / 9675863980 / AB39-12B686-AB

Aftermarket Cross-References: HELLA 4RV 008 188-671 / FEBI 183984 / HITACHI 2502086 / MAXGEAR 50-0526 / METZGER 0892209

Operating Voltage: 12 V

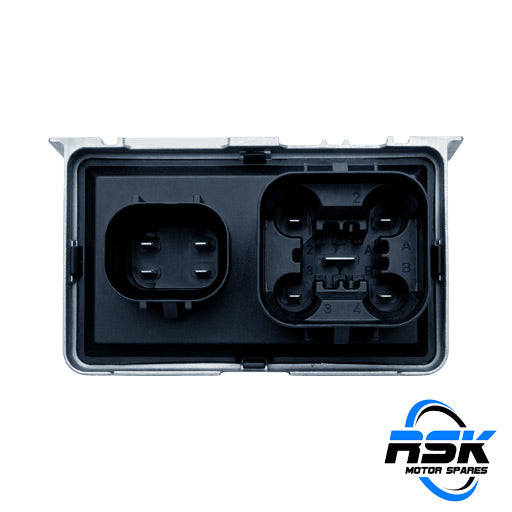

Connector Specification: 9-Pin Main Signal Connector + 2-Pin High-Current Input

Engine Compatibility: 4-Cylinder Turbo Diesel (2.2L TDCi / HDi)

Assembly Inclusions: Complete Solid-State Electronic Relay Control Module
