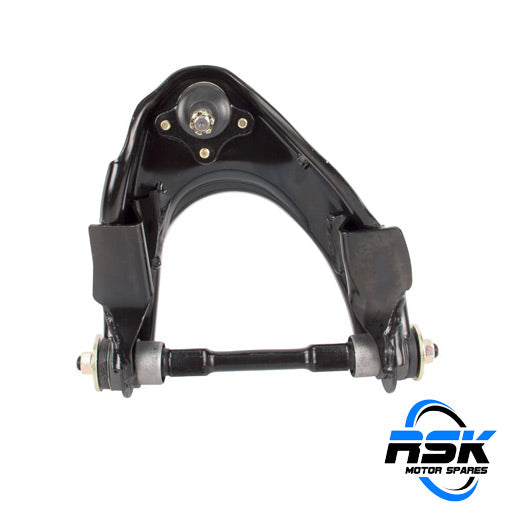

Ford Ranger, Everest, Mazda BT-50 - Upper Control Arm Left (LHS)

Description

This heavy-duty left-hand front upper control arm (wishbone) is manufactured to strict factory original equipment standards to restore precise wheel alignment, steering stability, and suspension dampening. Pre-assembled with high-durometer rubber suspension bushings and a heavy-duty upper ball joint featuring 12mm mounting bolt holes, this complete control arm assembly absorbs heavy road impact, reduces chassis flex, and eliminates uneven tire wear. Replacing a worn or damaged upper control arm restores structural front suspension geometry, eliminates suspension clunks over rough terrain, and maintains optimal tire contact under demanding off-road and towing conditions.

Compatible Vehicles

Ford Ranger (UN / J97 Platforms) 2.2 / 2.5 D/TD / 3.0 TDCi / 4.0 V6 4x2 & 4x4 (2000–2011)

Ford Everest (EU Platform) 2.5 TDCi / 3.0 TDCi 4x2 & 4x4 (2009–2015)

Mazda B-Series (Drifter) 2.2 / 2.5 D/TD / 2.6 / 3.0 V6 4x2 & 4x4 (2000–2007)

Mazda BT-50 (UN Platform) 2.2 / 2.5 TDi / 3.0 CRDi 4x2 & 4x4 (2007–2011)

Application Note: Specifically engineered for the Left-Hand Side (Passenger Side / LHS) front upper suspension assembly on torsion-bar suspension Ford and Mazda bakkies and SUVs. Important Fitment Note: This unit features 12mm pinch/mounting bolt holes on the upper ball joint flange. Please verify your existing vehicle's ball joint mounting bolt diameter before ordering, as some early production variants utilize 10mm bolt holes. A full front wheel alignment is strongly recommended following installation to restore factory tracking and maximize tire lifespan.



Specifications

Part Type: Front Upper Suspension Control Arm / Wishbone (Complete with Bushings & Ball Joint)

Position: Front Suspension, Upper Left-Hand Side (LHS / Passenger Side)

OEM Reference No: UH71-34-260

Cross-Reference OEM Nos: UH71-34-260A / UH72-34-260 / UM51-34-260 / 1453912 / 1453914

Alternative Part Numbers: FCA1111L / TCA1111L / JTC982 / 38048 (Febi) / TC2201

Ball Joint Mounting Hole Size: 12mm Diameter

Material Composition: Forged / Heavy-Gauge Pressed Steel Arm with High-Density Elastomeric Rubber Bushings

Assembly Inclusions: Upper Control Arm Body, Pre-Installed Inner Pivot Rubber Bushings, Heavy-Duty Upper Ball Joint (12mm Holes)

Fast and reliable delivery available across South Africa.
