Before You Order
Please ensure the part matches the photos and your vehicle before purchasing. OEM numbers are for reference only—this is an aftermarket part, not made or approved by the original vehicle manufacturer.

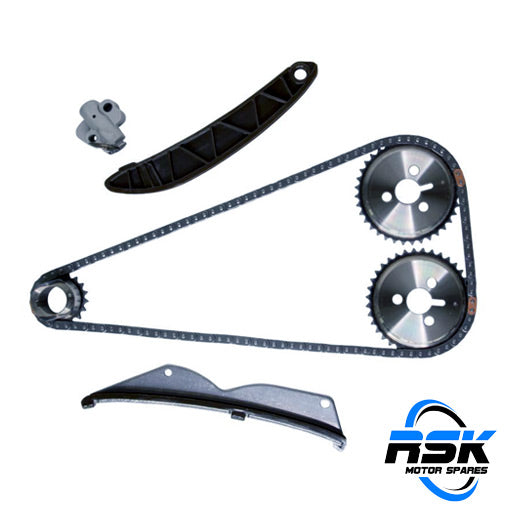

  • Chevrolet Spark & Spark Lite 1.0/1.2 S-TEC II Timing Chain Kit (96416302). Heavy-duty alloy steel. Fast South Africa delivery.
1 1

Chevrolet Spark & Spark Lite - Timing Chain Kit

Chevrolet Spark & Spark Lite - Timing Chain Kit

R 1,499.99
R 1,499.99
Sale Sold out
Shipping calculated at checkout.

Description

This precision-engineered engine timing chain kit is manufactured to exact original equipment specifications to maintain precise synchronization between the crankshaft and overhead camshafts. Constructed from high-strength, heat-treated alloy steel and fitted with wear-resistant synthetic guide rails, this kit is built to withstand high mechanical stress, continuous RPM cycling, and engine bay heat. Replacing a worn or stretched timing chain restores correct engine valve timing, eliminates metallic rattling noises during cold starts, prevents performance-robbing misfires, and protects the engine from catastrophic valve-to-piston damage caused by timing slippage.

Compatible Vehicles

Chevrolet Spark (M300 Generation) 1.0i (LA0 / LMU 16V DOHC 4-Cylinder Engine, 50kW) (2010–2016)

Chevrolet Spark (M300 Generation) 1.2i / 1.2 LS / LT (LL0 / LMU 16V DOHC 4-Cylinder Engine, 60kW) (2010–2016)

Chevrolet Spark Lite / Matiz (M200 / M250 Platform) 1.0i (B10S / LMU Engines) (2005–2010)

Application Note: Specifically engineered for Chevrolet 1.0L and 1.2L DOHC 16-valve 4-cylinder S-TEC II / LMU engine platforms used across the local M300 Spark model range. Important Fitment Note: Includes timing chain, hydraulic timing tensioner, fixed guide rail, and tensioner slide rail. Clean all timing cover gasket mating surfaces thoroughly prior to reassembly. Use engine-specific timing locking tools to lock the camshafts and crankshaft at Top Dead Center (TDC) during installation. Flush engine oil and replace the oil filter to maintain required oil pressure for the hydraulic tensioner.

Specifications

Part Type: Engine Timing Chain Kit

Position: Front Internal Engine Timing Housing

OEM Reference No: 96416302

Cross-Reference OEM Nos: 96416302 / 96416302S1 / 25183761 / 25183761S1 / 96416303 / 96416304 / 96416305

Alternative Part Numbers: TCK-CHEV-01 / TCKCHEV-01 / FEBI 193679 / FEBI 184892 / SWAG 33 11 1344 / SWAG 33 10 9633 / RED-LINE 29CV004 / RIDEX 1389T2519

Material Composition: Heavy-Duty Forged Alloy Steel Chain with High-Density Polyamide Composite Guide Rails

Fast and reliable delivery available across South Africa.
